zebra and silicon rubber

  •  zebra and silicon rubber
  •  zebra and silicon rubber
  •  zebra and silicon rubber
  •  zebra and silicon rubber
  •  zebra and silicon rubber
Model No.︰55*3.85*2.51
Brand Name︰-
Country of Origin︰China
Unit Price︰-
Minimum Order︰1000000 pc
Share on:

 Total 18 Related Items

Product Description

zebra and silicon rubber    Dong Guan Yongfeng Electronics Co., Ltdwhich professionally manufactures high-quality conductive rubber connector
( zebra ) and silicon rubber.In order to further develop Chinese market, it eastablished production base in 2003 in Dongguan City Guangdong Province .

K type connector film doubles side with very soft silicone sponge Rubber
Item   Unit 0.05p 0.1p 0.18p 0.25p
Pitch P mm 0.050.03 0.10.04 0.180.15 0.250.05
Length L mm 1.0100.1 10.1300.2 30.1600.3
60.11200.4 1201800.6 Over 1800.8
Height H mm 0.550.1 5.1100.15
Weidth W mm 0.1
Conductor Width Tc mm 0.030.01 0.050.03 0.10.03 0.10.03
Insulator Width Ti mm 0.02 0.05 0.09 0.12
Standard Contact Spacing CW mm 0.40.1
Minimum Contact Spacing   mm   0.3 0.5 0.7
Physical Properties
Parameter Unit Insulator Conductor Side Insulator
Volume Resistivity Ohm-cm 1*10^14 36 8*10^13
Dielectric Strength Kv/mm 2327   2327
Specific Gravity   1.2 1.25 1.10
Hardness   555 655 205
Tensile Strenght Kg/cm^2 7085 5060


Skew 0 0UNDER 3
Insulation Resistance(500VDC) Ohms 10^14
Temperature Range 0^C -20100 -20100 -20100
Elongation % 180250 150200 400500
Maximum Current Density(@25`C) mA/MM^2

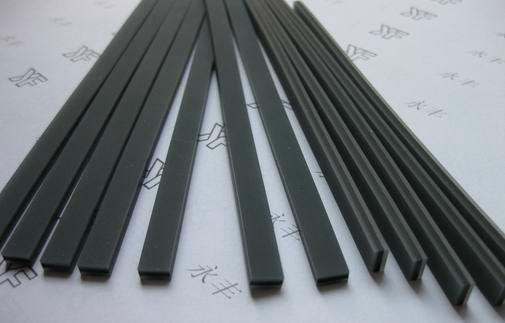

Product Image
